| 产品型号：WA111/WA121/WA124/126 |

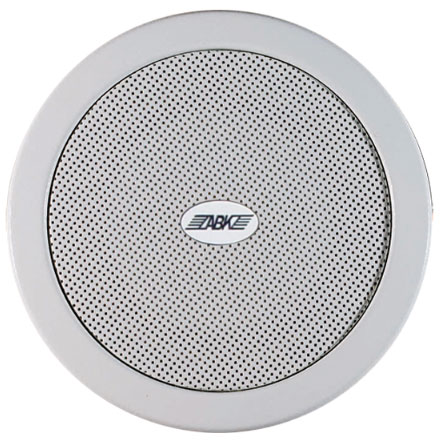

| 产品名称：WA111/WA121/WA124/126天花喇叭 |
| 产品描述：小型天花喇叭 |
|
|
|
性能特点〓
|
MODE ceiling
|
WA111
|
WA121
|
WA124
|
WA126
|
|
FULL-RANGE SPEAKER/HF DRIVER
|
4.5"×1
|
4.5"×1
|
6.5"×1
|
6.5"×1 1"×1
|
|
NOML POWER
|
3W
|
3W
|
3W
|
20W
|
|
MAX POWER
|
6W
|
6W
|
6W
|
|
|
LINE VOLTAGE
|
70/100V
|
70/100V
|
70/100V
|
70/100V
|
|
SENSITIVITY(1m,1W)
|
91dB
|
91dB
|
93dB
|
88dB
|
|
MAX SOUND PRESSURE LEVEL(1m)
|
96dB
|
96dB
|
98dB
|
101dB
|
|
FREQ. RESP
|
100-18,000Hz
|
100-16,000Hz
|
140-18,000Hz
|
60-18,000Hz
|
|
HOLE FOR MOUNTING
|
Φ154-Φ162mm
|
Φ154-Φ164mm
|
Φ165-Φ170mm
|
Φ194-Φ200mm
|
|
DIMENSIONS(H×W×L)
|
80×Φ175mm
|
80×Φ180mm
|
70×Φ186mm
|
95×Φ228mm
|
|
WEIGHT
|
0.9kg
|
0.8kg
|
0.5kg
|
1.8kg
|
小型天花喇叭

WA111 WA121 WA124 WA126
〓性能特点〓
|
MODE ceiling
|
WA111
|
WA121
|
WA124
|
WA126
|
|
FULL-RANGE SPEAKER/HF DRIVER
|
4.5"×1
|
4.5"×1
|
6.5"×1
|
6.5"×1 1"×1
|
|
NOML POWER
|
3W
|
3W
|
3W
|
20W
|
|
MAX POWER
|
6W
|
6W
|
6W
|
|
|
LINE VOLTAGE
|
70/100V
|
70/100V
|
70/100V
|
70/100V
|
|
SENSITIVITY(1m,1W)
|
91dB
|
91dB
|
93dB
|
88dB
|
|
MAX SOUND PRESSURE LEVEL(1m)
|
96dB
|
96dB
|
98dB
|
101dB
|
|
FREQ. RESP
|
100-18,000Hz
|
100-16,000Hz
|
140-18,000Hz
|
60-18,000Hz
|
|
HOLE FOR MOUNTING
|
Φ154-Φ162mm
|
Φ154-Φ164mm
|
Φ165-Φ170mm
|
Φ194-Φ200mm
|
|
DIMENSIONS(H×W×L)
|
80×Φ175mm
|
80×Φ180mm
|
70×Φ186mm
|
95×Φ228mm
|
|
WEIGHT
|
0.9kg
|
0.8kg
|
0.5kg
|
1.8kg
|
|
|
|
|
